NoorCity
How can a city monitor its street lighting in real time and anticipate failures?
A Smart City platform for public street lighting, as a Symfony web app and a JavaFX desktop app on one MySQL database. I led the Infrastructure module (failure prediction, YOLO vehicle detection, ESP32 IoT), then extended the project with a Kotlin Android app: the city is run from the field, with Firebase, on-device AI and scooter charging.
- My role
- Infrastructure module (AI, computer vision, IoT) and the Kotlin Android extension
- Platforms
- Android, Web, Desktop, IoT, AI
- Stack
- Symfony
- Kotlin
- Jetpack Compose
- Python
- YOLO
- TensorFlow Lite
- Firebase
- OpenCV
- Scikit-learn
- ESP32-CAM
- JavaFX
- WebSocket
- PHP
- MVC
- Java
- MySQL
- ML Kit
- Stripe
- Leaflet.js
- Arduino
- Node.js
- Machine learning
- Computer vision
- NumPy
- pandas
- JavaScript
Situation
15features delivered in my module: lamps, zones, cameras, IoT
Street lighting is costly in energy and often managed by hand: failures found late, interventions poorly tracked. NoorCity connects smart lamps, citizens and technicians in one system.
3rd-year PIDEV project at Esprit, in a team of 5, one area each. Mine: infrastructure (lamps, zones, cameras), which I made predictive and real-time with AI and IoT.
Then I wanted to go beyond the desktop screen: I extended the project with an Android app, to take NoorCity where the lamps are, in the field.
Product

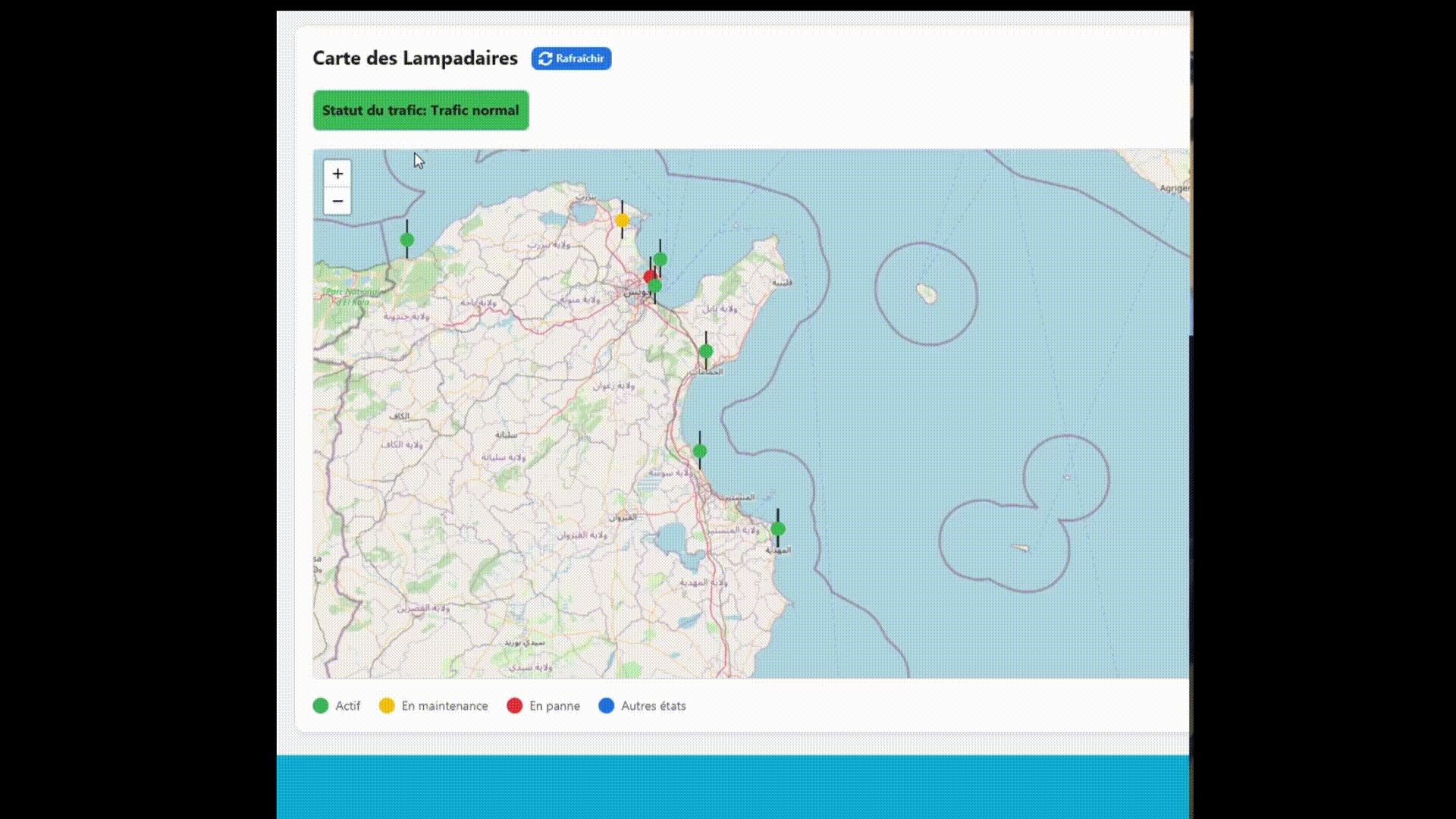

- Lamp map showing each lamp’s failure probability.
- A QR code on every lamp: a technician scans it and opens its sheet.
- 3 suggested spots for new lamps in a zone.
- Live traffic from the cameras, with a traffic-jam alert.
Mobile extension: the city in your pocket
An idea added to the web and Java project: everything the team manages from the office, available in the field, plus new uses for citizens.
- 3 profiles (admin, technician, citizen), around forty screens, in French, English and Arabic.
- Scan a lamp’s QR code to report a failure or start an intervention.
- Live cameras, analysed by on-phone AI: people, vehicles, safety score.
- Noor Charge: charge a scooter or a bike on an equipped lamp, with Stripe payment (test mode) and energy tracked live.
- Real-time sensors, weather and air quality.
- Certified videos through a SHA-256 blockchain: you can prove a recording was not altered.
- Lighting programmes, citizen-proposed events, team chat.
Fig. 01 Fig. 02
System
- Web: Symfony 6.4, MVC (Twig, Doctrine, Leaflet), for staff and citizens.
- Desktop: JavaFX, MVC (FXML), connected over JDBC to the same MySQL database: web and desktop share the same data.
- AI in Python (scikit-learn, YOLO, OpenCV), called from Symfony or linked over WebSocket for real time.
- IoT: camera-equipped ESP32, Arduino and motion, light and temperature sensors.
- Mobile: Kotlin + Jetpack Compose (Material 3), MVVM: screen → ViewModel (StateFlow) → repository listening to Firebase in real time.
- Firebase as a serverless backend: Auth (email, Google, Facebook), Realtime Database, Firestore, Cloud Functions.
- The ESP32 boards read and write the same Firebase data: app and hardware stay in sync live; only the ESP32-CAM video stream is read directly.
One request, end to end
Model & data
- Failures: a RandomForest estimates each lamp’s risk from its age, power, type, past failures and traffic.

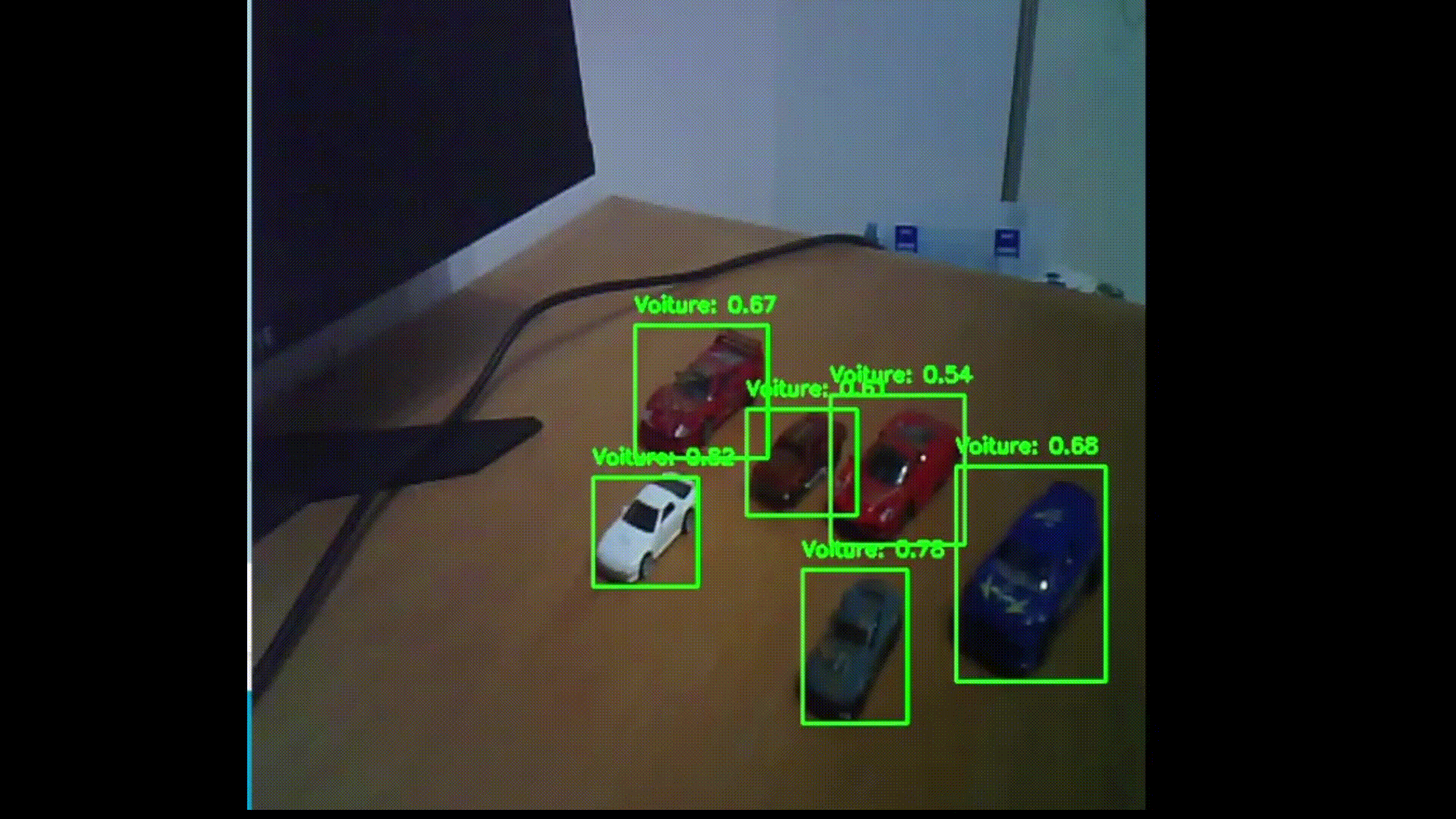

- Traffic: YOLO finds and counts vehicles in the ESP32-CAM stream.
- Placement: positions are drawn around existing lamps, filtered by distance and validated by geocoding (not in water, in an urban area).
On mobile and embedded:
- A TensorFlow Lite model (MobileNet) analyses the camera image right on the phone: people, vehicles, safety score.
- The ESP32-CAM detects accidents by frame difference, with rules and thresholds generated in Python and embedded in the board.
Limit: the failure model was trained on simulated data; the next step is to retrain it on the exported real data.
